소개
Thank you for choosing the MXL2008 PF001 Bundle. This professional condenser microphone system is designed to deliver high-quality audio capture for a variety of applications, including studio recording, broadcasting, and live sound. This manual provides essential information for the proper setup, operation, and maintenance of your microphone to ensure optimal performance and longevity.
제품을 사용하기 전에 이 설명서를 자세히 읽고 나중에 참조할 수 있도록 보관하세요.
중요한 안전 정보
감전, 화재 또는 제품 손상을 방지하기 위해 다음 예방 조치를 준수하십시오.
- 마이크를 비나 습기에 노출시키지 마십시오.
- Avoid extreme temperatures or high humidity.
- 마이크를 분해하거나 개조하지 마십시오. 모든 정비는 자격을 갖춘 기술자에게 맡기십시오.
- Ensure proper phantom power (48V) is supplied by your audio interface or mixer, if required.
- 물리적 손상을 방지하기 위해 마이크를 조심스럽게 다루십시오.
상자 안에 무엇이 들어있나요?
The MXL2008 PF001 Bundle typically includes:
- MXL 2008 콘덴서 마이크
- Shock Mount (PF001 component)
- Hard Mount Adapter
- 청소용 천
- 사용 설명서 (본 문서)

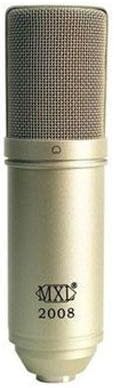

Image: The MXL 2008 condenser microphone, a cylindrical microphone with a metallic mesh grille at the top and the MXL 2008 logo on its body. This is the primary component of the bundle.
설치 가이드
Follow these steps to set up your MXL2008 PF001 Bundle:
- 마이크 장착:
- Attach the shock mount (PF001) to a standard microphone stand.
- Carefully insert the MXL 2008 microphone into the shock mount. Ensure it is securely held by the elastic bands. The shock mount helps to isolate the microphone from vibrations and handling noise.
- 오디오 인터페이스/믹서에 연결하기:
- Connect one end of an XLR cable (not included) to the XLR output at the base of the MXL 2008 microphone.
- Connect the other end of the XLR cable to an available XLR input on your audio interface, mixer, or preamp리퍼.
- 팬텀 전원 적용:
- The MXL 2008 is a condenser microphone and requires 48V phantom power to operate.
- Activate the +48V phantom power switch on your audio interface or mixer for the input channel connected to the microphone.
- 주의: Ensure the microphone is connected before activating phantom power to avoid potential pops or damage.
- 입력 이득 설정:
- With phantom power active, gradually increase the input gain (preamp level) on your audio interface or mixer.
- Speak or sing into the microphone at your typical performance level and adjust the gain until you achieve a strong signal without clipping (distortion). Most interfaces have a peak indicator light to help with this.
작동 지침
The MXL 2008 is a versatile microphone suitable for various recording scenarios. Here are general guidelines for operation:
- 마이크 배치:
- Position the microphone approximately 6-12 inches (15-30 cm) from the sound source for vocals or acoustic instruments. Adjust distance based on desired proximity effect and room acoustics.
- The MXL 2008 has a cardioid polar pattern, meaning it picks up sound primarily from the front and rejects sound from the sides and rear. Point the front of the microphone (where the MXL logo is) directly at the sound source.
- 팝 필터 사용법:
- For vocal recordings, it is highly recommended to use an external pop filter (not included) placed between the vocalist and the microphone. This helps to reduce plosive sounds (P's and B's) and protect the microphone capsule from moisture.
- 모니터링:
- Monitor your audio through headphones or studio monitors connected to your audio interface/mixer. This allows you to hear the microphone's output and make necessary adjustments to gain and placement.
- 녹음 소프트웨어:
- Ensure your Digital Audio Workstation (DAW) software is configured to recognize your audio interface and the correct input channel.
- Arm the track for recording and begin capturing your audio.
유지 보수 및 관리
Proper care will extend the life and maintain the performance of your MXL 2008 microphone:
- 청소: Use a soft, dry, lint-free cloth to wipe the microphone body. Do not use liquid cleaners or solvents, as they may damage the finish or internal components.
- 저장: When not in use, store the microphone in its original packaging or a protective case to shield it from dust, moisture, and physical impact.
- 환경 조건: 마이크를 극한 온도, 높은 습도 또는 직사광선에 장시간 노출시키지 마십시오.
- 손질: Always handle the microphone by its body, not by the cable or grille.
문제 해결
If you encounter issues with your MXL 2008 microphone, refer to the following common problems and solutions:
| 문제 | 가능한 원인 | 해결책 |
|---|
| 소리가 출력되지 않음 | - 팬텀 파워 없음
- XLR 케이블에 결함이 있습니다
- 잘못된 입력 선택
- 낮은 게인 설정
| - Ensure +48V phantom power is enabled on your interface/mixer.
- 다른 XLR 케이블을 사용해 보세요.
- Verify the correct input channel is selected in your DAW/mixer.
- Increase the input gain.
|
| 왜곡된 소리 | - 입력 게인이 너무 높습니다
- Microphone too close to source
| - Reduce the input gain on your interface/mixer.
- 마이크와 음원 사이의 거리를 늘리세요.
|
| 윙윙거리는 소리 또는 윙윙거리는 소리 |
| - 모든 장비가 적절하게 접지되었는지 확인하십시오.
- Move the microphone or cables away from power supplies, monitors, or other electronic devices.
- 다른 XLR 케이블을 사용해 보세요.
|
If the problem persists after trying these solutions, please contact MXL customer support.
명세서
| 특징 | 세부 사항 |
|---|
| 제조업체 | 엠엑스엘 |
| 모델 번호 | 2008PF001 |
| 품목 무게 | 5.05파운드(약 2.29kg) |
| ASIN | B009TT7AO2 |
| 첫 번째 이용 가능 날짜 | 14년 2012월 XNUMX일 |
| 포함된 구성 요소 | Microphone (MXL 2008), PF001 (Shock Mount) |
참고: 제품 개선을 위해 사양은 예고 없이 변경될 수 있습니다.
보증 및 지원
MXL products are manufactured to the highest quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official MXL web대지.
For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact MXL customer support through their official channels. Always provide your product model number (MXL2008 PF001) and ASIN (B009TT7AO2) when seeking support.
자세한 정보와 지원 리소스는 다음 사이트를 방문하여 확인할 수 있습니다. MXL Store on Amazon.
