1. 서론
This manual provides comprehensive instructions for the proper installation, operation, and maintenance of the Dayco 85056 Timing Belt Actuator. Please read this manual thoroughly before attempting any installation or service to ensure safe and effective use of the product. Retain this manual for future reference.
The Dayco 85056 Timing Belt Actuator is designed for specific automotive applications to maintain proper tension on the timing belt, which is crucial for the synchronized operation of engine components.
2. 안전 정보
WARNING: Improper installation or handling of automotive components can lead to serious injury or damage to the vehicle. Always follow manufacturer's guidelines and use appropriate safety equipment.
- 항상 보안경, 장갑 등 적절한 개인 보호 장비(PPE)를 착용하십시오.
- 작업을 시작하기 전에 차량이 제대로 지지되고 고정되었는지 확인하십시오.
- Disconnect the vehicle's battery before working on electrical components or when instructed by the vehicle service manual.
- Refer to the vehicle's specific service manual for detailed instructions and torque specifications related to timing belt system components.
- 어린이와 허가받지 않은 사람을 작업 구역에 접근시키지 마십시오.
- 폐부품 및 유체는 현지 규정에 따라 책임감 있게 폐기하십시오.
3. 패키지 내용
Verify that all components are present and undamaged upon opening the package. If any items are missing or damaged, contact your supplier immediately.
- 1 x Dayco 85056 Timing Belt Actuator
- (Additional components may vary by kit; refer to your specific kit packaging)

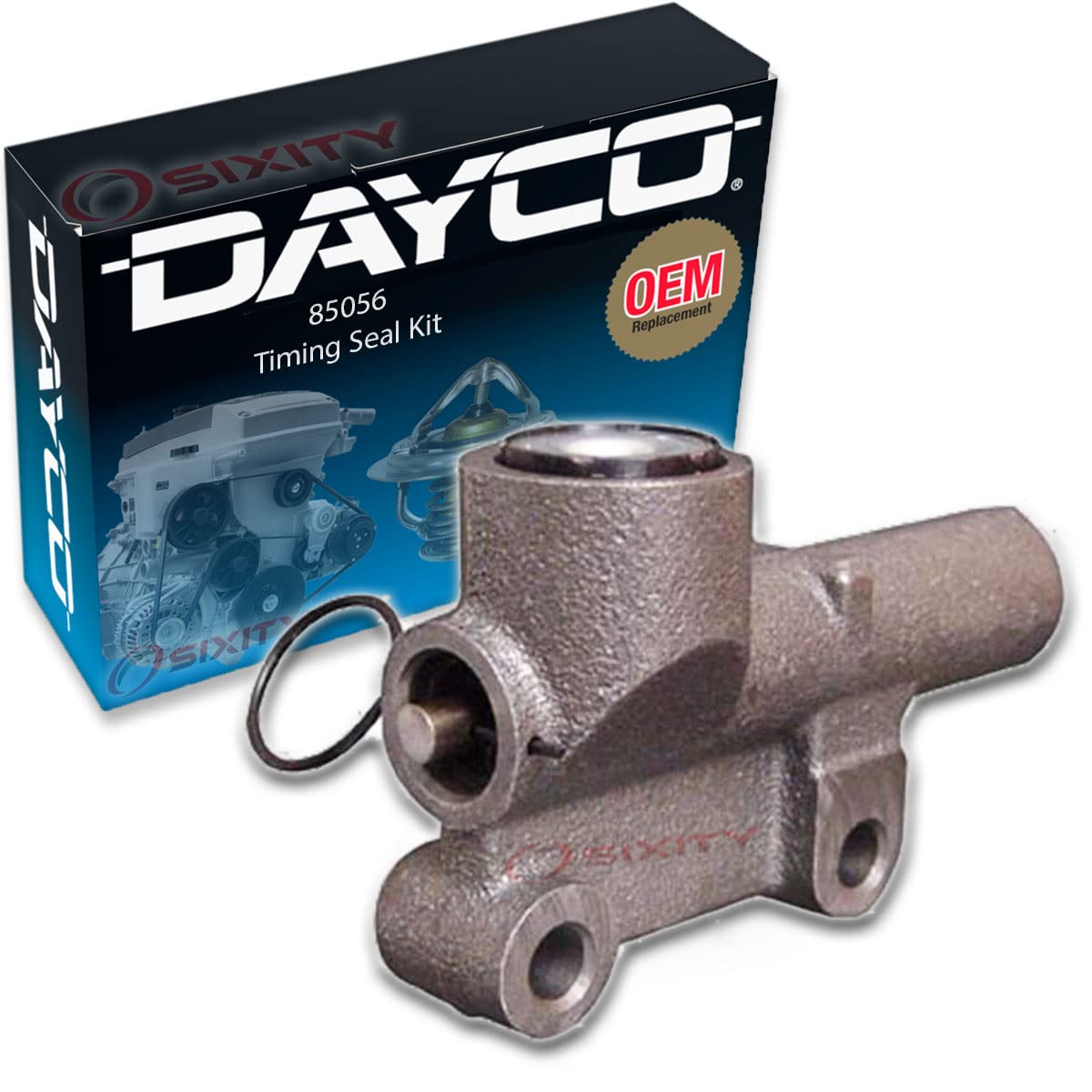

Image 1: The Dayco 85056 Timing Belt Actuator. This image shows the main component of the timing belt system, designed to maintain proper belt tension.
4. 설치
The installation of a timing belt actuator is a complex procedure that requires specialized tools and automotive knowledge. It is highly recommended that installation be performed by a certified automotive technician.
4.1 사전 설치 단계
- 엔진이 식었는지, 차량 배터리가 분리되어 있는지 확인하십시오.
- Refer to the vehicle manufacturer's service manual for specific procedures for timing belt removal and installation.
- Identify and mark the timing marks on the crankshaft and camshafts before removing the old timing belt.
- Carefully remove the old timing belt and tensioner/actuator assembly.
4.2 액추에이터 설치
- Position the new Dayco 85056 Timing Belt Actuator in its designated location.
- Secure the actuator using the appropriate fasteners. Do not fully tighten at this stage.
- Install the new timing belt, ensuring all timing marks are correctly aligned.
- Follow the vehicle manufacturer's instructions for setting the timing belt tension using the actuator. This typically involves releasing a pin or applying a specific torque to rotate the actuator until the correct tension is achieved.
- 모든 패스너를 차량 제조업체에서 지정한 토크 값으로 조이십시오.
- Rotate the engine manually two full revolutions (clockwise, unless specified otherwise by the vehicle manual) to confirm timing mark alignment and proper belt tension.
- 분리했던 모든 부품을 역순으로 다시 조립하십시오.
- 배터리를 다시 연결합니다.
5. 운영
The Dayco 85056 Timing Belt Actuator operates automatically to maintain optimal tension on the timing belt once installed correctly. It does not require manual adjustment after initial setup.
Upon engine startup, the actuator will dynamically adjust to compensate for belt stretch and temperature changes, ensuring precise valve timing and efficient engine operation.
6. 유지관리
The Dayco 85056 Timing Belt Actuator is designed for long-term reliability and typically does not require routine maintenance. However, it is recommended to inspect the timing belt system, including the actuator, at intervals specified by the vehicle manufacturer.
- 시각적 검사: During routine vehicle service, visually inspect the actuator for signs of leakage, excessive wear, or damage.
- 벨트 장력 점검: Ensure the timing belt maintains proper tension. A loose or overly tight belt can indicate an issue with the actuator or other timing components.
- 대사: The timing belt actuator should generally be replaced whenever the timing belt is replaced, as recommended by vehicle manufacturers, to ensure the integrity of the entire timing system.
7. 문제 해결
If you experience issues related to the timing belt system after installing the Dayco 85056 Timing Belt Actuator, consider the following:
| 징후 | 가능한 원인 | 해결책 |
|---|---|---|
| Engine noise (e.g., squealing, rattling) | Incorrect belt tension, worn belt, faulty actuator. | Inspect belt tension and condition. Verify actuator function. Consult a professional technician. |
| Engine misfires or poor performance | Incorrect timing due to actuator malfunction or improper installation. | Check timing marks and belt tension. Re-evaluate installation steps. Seek professional diagnosis. |
| Actuator leakage | Damaged seal or faulty unit. | 액추에이터를 교체하십시오. |
For complex issues, it is always recommended to consult a qualified automotive technician.
8. 사양
| 특징 | 세부 사항 |
|---|---|
| 모델 번호 | 85056 |
| 상표 | Dayco |
| 품목 무게 | 1.2파운드(약 16온스) |
| 제품 치수 | 10.33" L x 6.51" W x 2.1" H (Package) / 6.2" x 3.9" x 3.1" (Item) |
| 벨트 스타일 | 타이밍 벨트 |
| 호환 장치 | Car (specific models vary by application) |
| 제조업체 부품 번호 | 85056 |
9. 보증 및 지원
Dayco products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty documentation included with your purchase or visit the official Dayco web사이트. 보증 약관은 다를 수 있습니다.
For technical support, installation assistance, or to report a defective product, please contact Dayco customer service through their official channels. Have your product model number (85056) and purchase details ready when contacting support.
Dayco Official Web대지: www.dayco.com
