KOHLER 1.5 GPM Aerator Kit (Model 1089003) Instruction Manual

1. 소개 및 이상view

This manual provides comprehensive instructions for the installation, operation, and maintenance of the KOHLER 1.5 GPM Aerator Kit, Model 1089003. This aerator is a genuine Kohler replacement part designed to regulate water flow to 1.5 gallons per minute (GPM) and aerate the water stream from your faucet, ensuring efficient performance and water conservation.

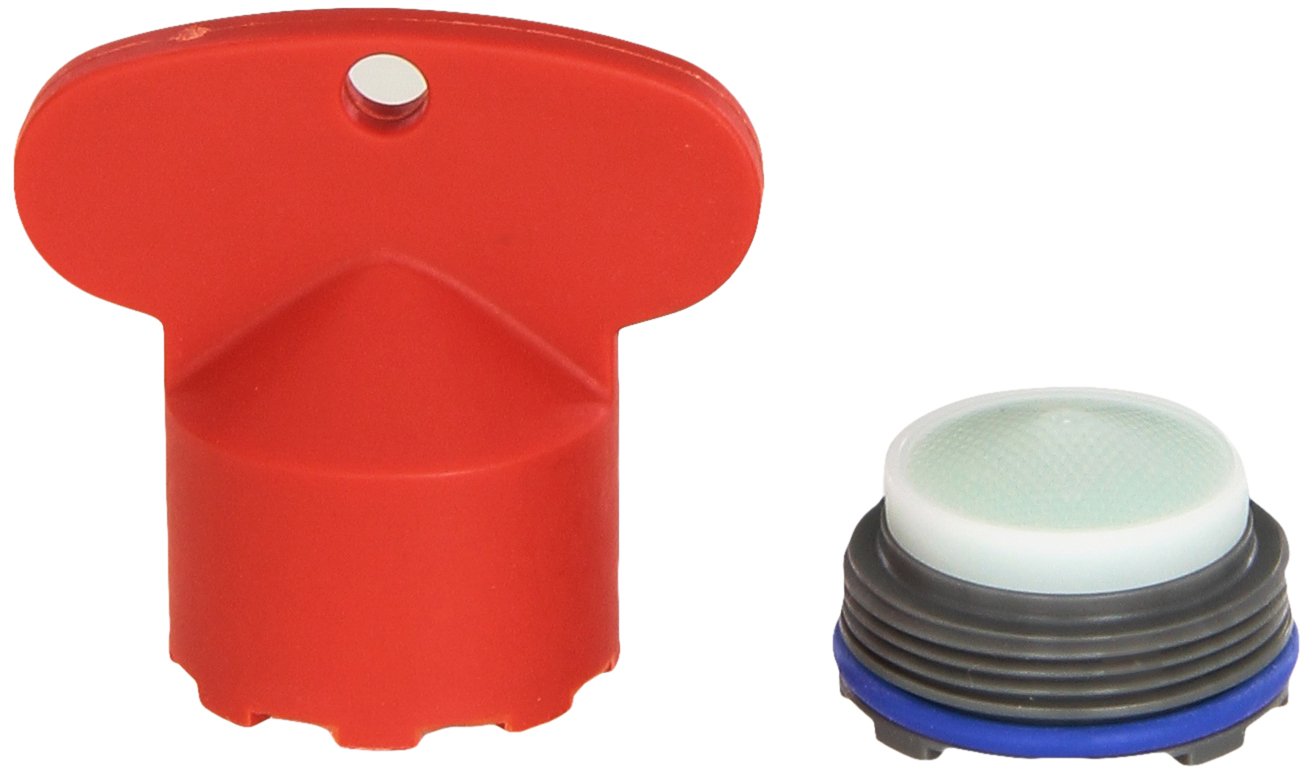

Image: The KOHLER 1.5 GPM Aerator Kit, Model 1089003. This image displays the small, cylindrical component designed to regulate water flow and aerate the stream from a faucet.

2. 제품 특징

• Genuine KOHLER Part: Ensures compatibility and maintains product warranty.
• 유량 1.5 GPM: Provides efficient water usage while maintaining adequate pressure.
• 내구성 있는 구조: Engineered with premium materials (Either Brass or Stainless Steel) for enhanced longevity.
• 쉬운 교체: Designed for straightforward installation as a replacement part.

3. 설정 및 설치

3.1 시작하기 전에

• 필요한 도구: Adjustable wrench (optional, for stubborn aerators), soft cloth, small flathead screwdriver (if aerator has a slot).
• 안전 예방 조치: Turn off the water supply to the faucet before beginning installation to prevent accidental water flow.

3.2 설치 단계

1. 기존 폭기기 제거:

   Unscrew the existing aerator from the tip of the faucet spout. Most aerators can be unscrewed by hand. If it is too tight, wrap a soft cloth around it and use an adjustable wrench to gently loosen it. For aerators with a small slot, use a flathead screwdriver to turn.

2. 수도꼭지 주둥이 청소하기:

   Clean any debris, mineral deposits, or old gasket material from the threads inside the faucet spout. This ensures a proper seal for the new aerator.
3. Insert New Aerator:

   Ensure the new KOHLER 1.5 GPM Aerator Kit is correctly oriented. Gently screw the new aerator into the faucet spout by hand until it is snug. Avoid overtightening, as this can damage the aerator or faucet threads.

4. 누출 테스트:

   Turn the water supply back on. Slowly open the faucet and check for any leaks around the aerator. If a leak occurs, gently tighten the aerator a bit more. If the leak persists, remove the aerator, check for proper seating of the gasket (if applicable), and re-install.

4. 사용 설명서

The KOHLER 1.5 GPM Aerator Kit operates passively once installed. It automatically mixes air into the water stream, creating a consistent, splash-free flow while reducing water consumption to 1.5 gallons per minute. No further user interaction is required for its basic operation.

5. 유지관리

Regular maintenance of your aerator helps maintain optimal water flow and prevents mineral buildup. It is recommended to clean the aerator every few months, or more frequently in areas with hard water.

1. 에어레이터 제거: Unscrew the aerator from the faucet spout as described in the installation steps.
2. Disassemble (if applicable): Some aerators can be disassembled into mesh screens and flow restrictors. Carefully separate these components.
3. 깨끗한 구성 요소: Rinse all parts under running water. Use a small brush (like an old toothbrush) to remove any visible debris or mineral deposits. For stubborn mineral buildup, soak the components in a solution of equal parts white vinegar and water for 30 minutes to an hour.
4. 재조립 및 재설치: Rinse the cleaned components thoroughly with clean water, reassemble them (if disassembled), and screw the aerator back onto the faucet spout. Test for leaks.

6. 문제 해결

7. 사양

8. 보증 및 지원

This KOHLER product is covered by Kohler's standard warranty. To protect your warranty, always ensure you are using genuine KOHLER parts. For detailed warranty information, product support, or to purchase additional genuine parts, please visit the official Kohler website or contact Kohler customer service.

더 자세한 정보와 지원은 다음 웹사이트를 방문하시면 받으실 수 있습니다. 아마존에서 콜러 스토어를 만나보세요.
