소개
This manual provides essential information for the proper installation, operation, and maintenance of your Standard Motor Products PSS4T Power Steering Pressure Switch. Please read these instructions carefully before proceeding with installation or use to ensure optimal performance and safety.
제품 끝view
The Standard Motor Products PSS4T is a power steering pressure switch designed for automotive applications. It plays a crucial role in the vehicle's power steering system, often signaling the engine control unit (ECU) about power steering load to adjust engine idle speed and maintain smooth operation.
주요 특징:
- Direct replacement for original equipment (OE) part.
- Designed to meet or exceed OE specifications.
- Ensures proper power steering system function.
- 오래 지속되는 성능을 위한 내구성 있는 구조.
상자 안에 무엇이 들어있나요?
- 1x Standard Motor Products PSS4T Power Steering Pressure Switch

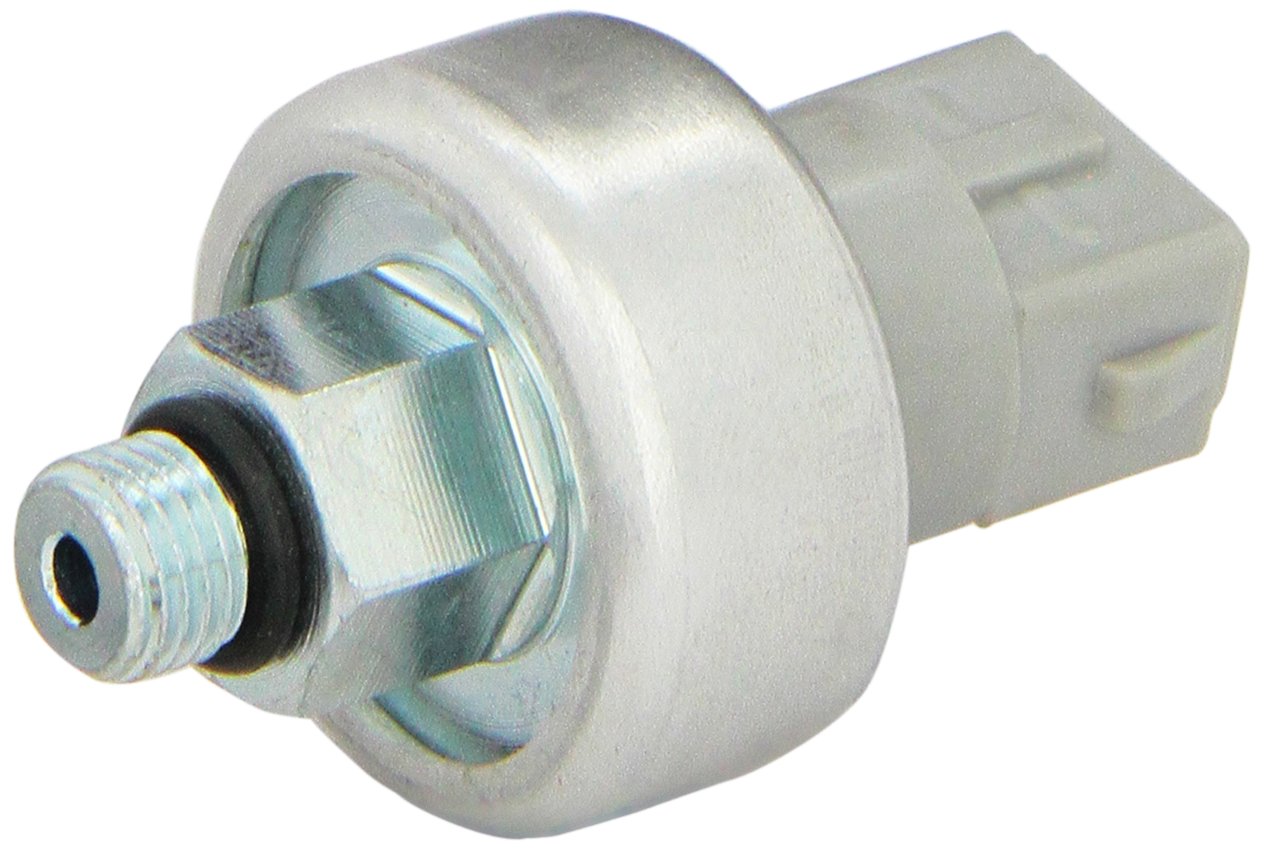

이미지 1: The Standard Motor Products PSS4T Power Steering Pressure Switch. This image shows the complete unit, featuring the metal threaded base for installation into the power steering system and the gray electrical connector for wiring.
설치 지침
전문가의 설치를 권장합니다. Always refer to your vehicle's specific service manual for detailed instructions and torque specifications. Ensure the engine is off and cool before beginning any work.
안전 예방 조치:
- 안전 안경과 장갑 등 적절한 개인 보호 장비(PPE)를 착용하세요.
- Disconnect the vehicle's battery before starting work to prevent electrical shorts.
- Be aware of hot engine components and power steering fluid.
- Ensure the vehicle is securely supported if lifting is required.
단계:
- 기존 스위치 찾기: Identify the power steering pressure switch on your vehicle. It is typically located on the power steering pump or a high-pressure line.
- 제거 준비: Place a drain pan underneath the switch to catch any power steering fluid that may leak during removal.
- 전기 커넥터 분리: 오래된 스위치에서 전기 커넥터를 조심스럽게 분리합니다.
- 이전 스위치 제거: Using an appropriate wrench, carefully unscrew and remove the old power steering pressure switch. Be prepared for some fluid leakage.
- 새로운 스위치 설치: Apply a small amount of thread sealant (if recommended by your vehicle's manual) to the threads of the new PSS4T switch. Screw the new switch into place by hand to avoid cross-threading, then tighten it to the manufacturer's specified torque. 너무 조이지 마세요.
- 전기 커넥터를 다시 연결하세요: Firmly connect the electrical connector to the new PSS4T switch.
- 유체 레벨 재충전/확인: Check and top off the power steering fluid reservoir as needed, using the correct type of fluid for your vehicle.
- (필요한 경우) 블리드 시스템: If air has entered the system, follow your vehicle's procedure for bleeding the power steering system. This usually involves turning the steering wheel lock-to-lock several times with the engine running.
- 테스트 작업: Start the engine and check for any leaks around the new switch. Verify that the power steering operates correctly and that any related dashboard warning lights are off.
작동 원리
The PSS4T power steering pressure switch operates by detecting the hydraulic pressure within the power steering system. When the steering wheel is turned, especially at low speeds or while stationary, the power steering pump works harder, increasing fluid pressure. The switch senses this increase in pressure and sends a signal to the vehicle's engine control unit (ECU).
Upon receiving this signal, the ECU may slightly increase the engine's idle speed to compensate for the additional load placed on the engine by the power steering pump. This prevents the engine from stalling or experiencing a significant drop in RPM during heavy steering maneuvers, ensuring smooth and consistent engine operation.
유지
The Standard Motor Products PSS4T Power Steering Pressure Switch is designed to be a maintenance-free component. However, regular inspection of the power steering system can help ensure its longevity and proper function:
- 유체 수준: Periodically check the power steering fluid level and top off with the correct fluid type as needed. Low fluid levels can cause increased wear on components.
- 누출: Inspect the power steering system, including hoses, pump, and the pressure switch, for any signs of fluid leaks. Address leaks promptly to prevent damage to components.
- 배선: Ensure the electrical connector to the switch is clean, secure, and free from corrosion or damage.
If any issues are observed, consult a qualified automotive technician.
문제 해결
If you suspect an issue with your power steering pressure switch, consider the following common symptoms and potential causes:
| 징후 | 가능한 원인 | 행동 |
|---|---|---|
| Engine stalls or RPM drops significantly when turning the steering wheel at low speeds. | Faulty pressure switch not signaling ECU, or low power steering fluid. | Check power steering fluid level. Inspect switch wiring. Test switch operation with a diagnostic tool. Replace if faulty. |
| Power steering fluid leak around the switch. | Loose switch, damaged O-ring/seal, or cracked switch housing. | Tighten switch to specification. If leak persists, replace the switch and ensure proper sealing. |
| Check Engine Light (CEL) illuminated with a related diagnostic trouble code (DTC). | Electrical fault in the switch or wiring, or internal switch failure. | Scan for DTCs. Inspect wiring and connector. Test switch continuity and resistance. Replace if out of specification. |
문제 해결 단계를 수행해도 문제가 해결되지 않으면 인증된 자동차 기술자에게 문의하는 것이 좋습니다.
명세서
| 기인하다 | 세부 사항 |
|---|---|
| 상표 | 표준 모터 제품 |
| 모델 | PSS4T |
| 부품 번호 | PSS4T |
| 스위치 유형 | 압력 스위치 |
| 액추에이터 유형 | 압력 스위치 |
| 제어 유형 | Pressure-based |
| 현재 평가 | 2 Amps |
| 운영 볼륨tage | 120 볼트 |
| 연락처 유형 | 10파운드 |
| 회로 유형 | 1방향 |
| 위치 수 | 2 |
| 장착 유형 | 패널 실장 |
| 품목 치수(L x W x H) | 2 x 1.4 x 3.4 인치 |
| 품목 무게 | 0.13 파운드 |
| 접촉 재료 | 구리 |
| 국제 보호 등급 | IP54 |
| 사양 충족 | UL, IP54 |
| 차량 유형과 호환 가능 | 승용차 |
| 호환 장치 | Vehicles with power steering systems |
| 한국어: | 025623212371 |
보증 및 지원
For information regarding product warranty, returns, or technical support, please refer to the official Standard Motor Products web사이트에서 확인하거나 고객 서비스에 직접 문의하세요. 구매 증빙 자료로 구매 영수증을 보관하세요.
스탠다드 모터 제품 공식 Web대지: www.smpcorp.com
